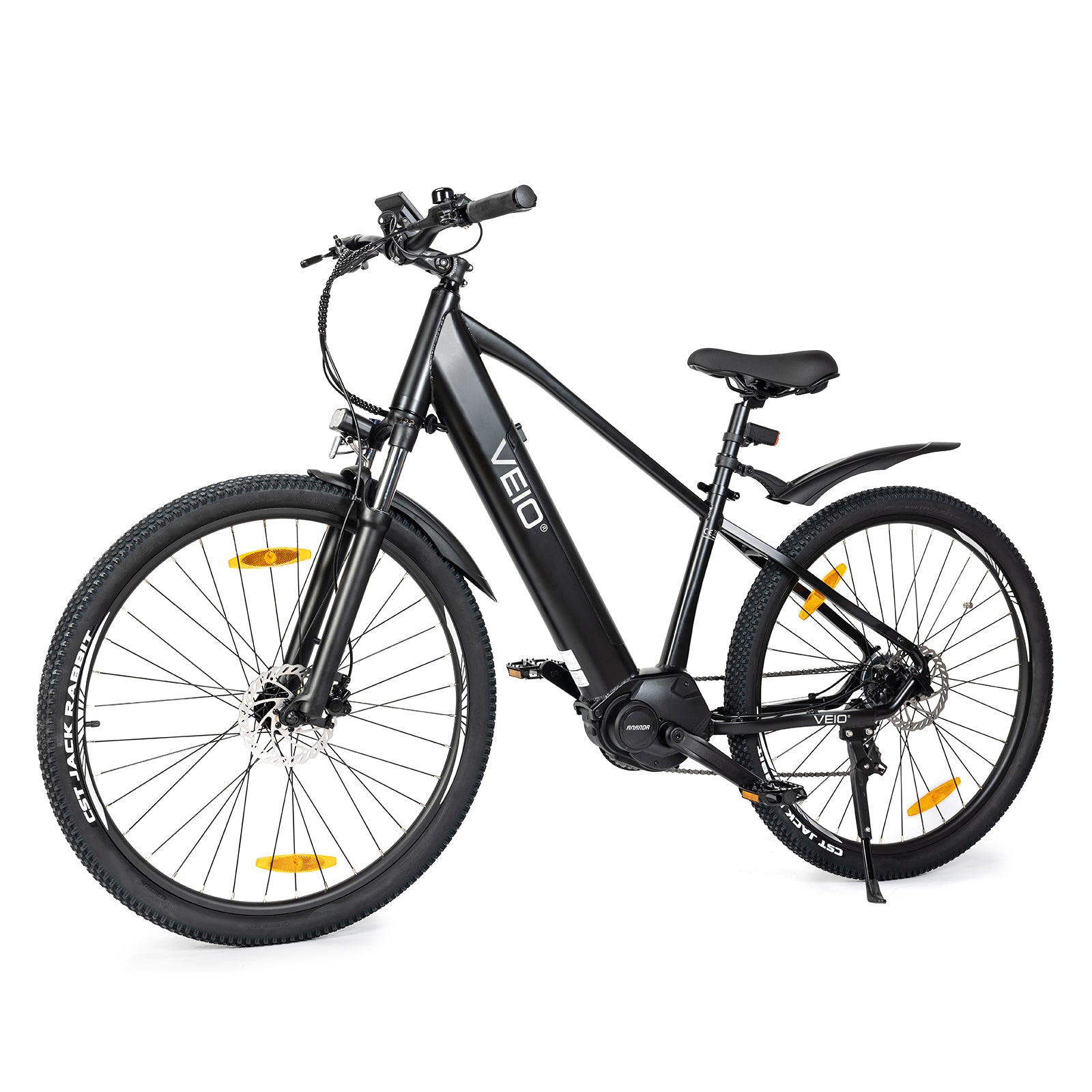

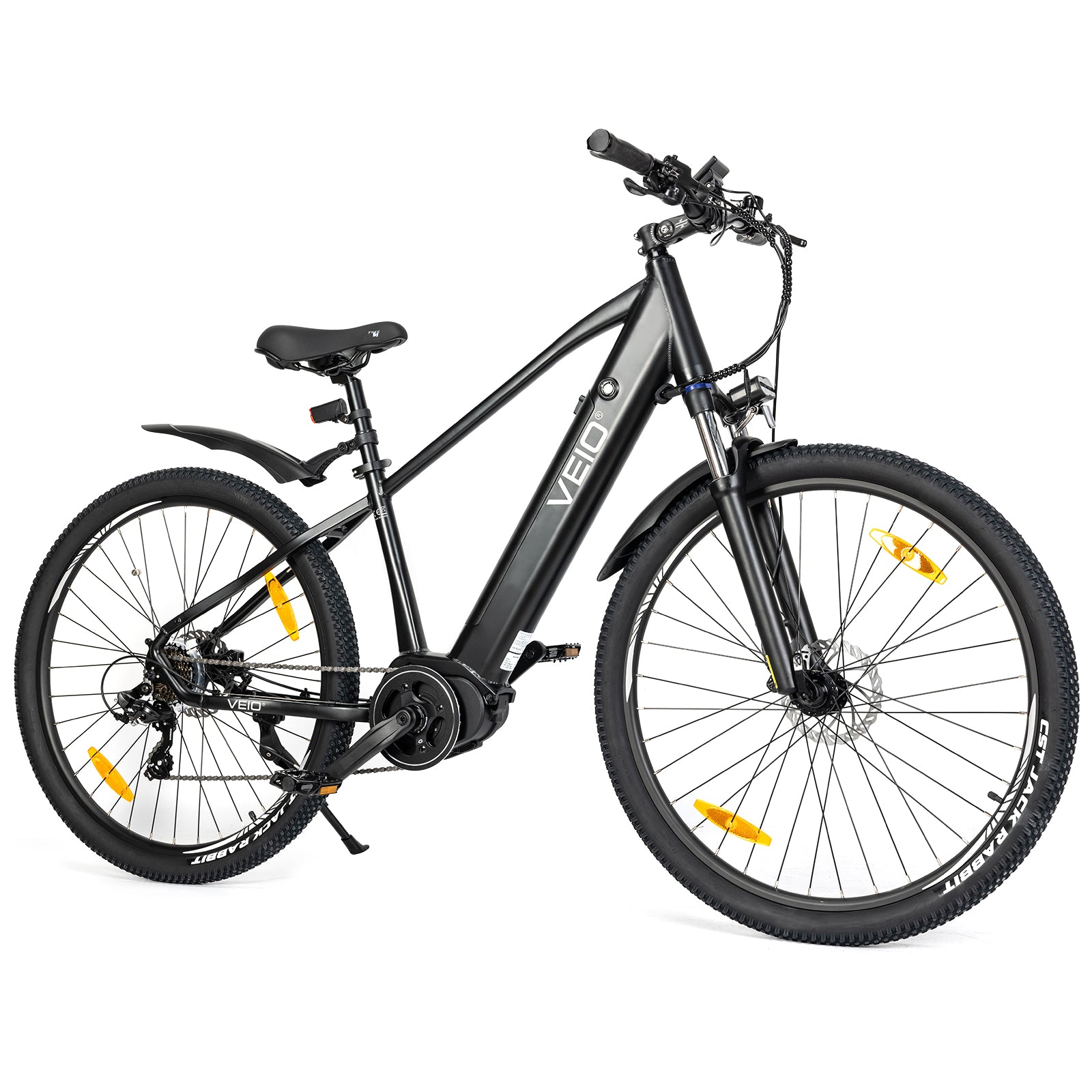

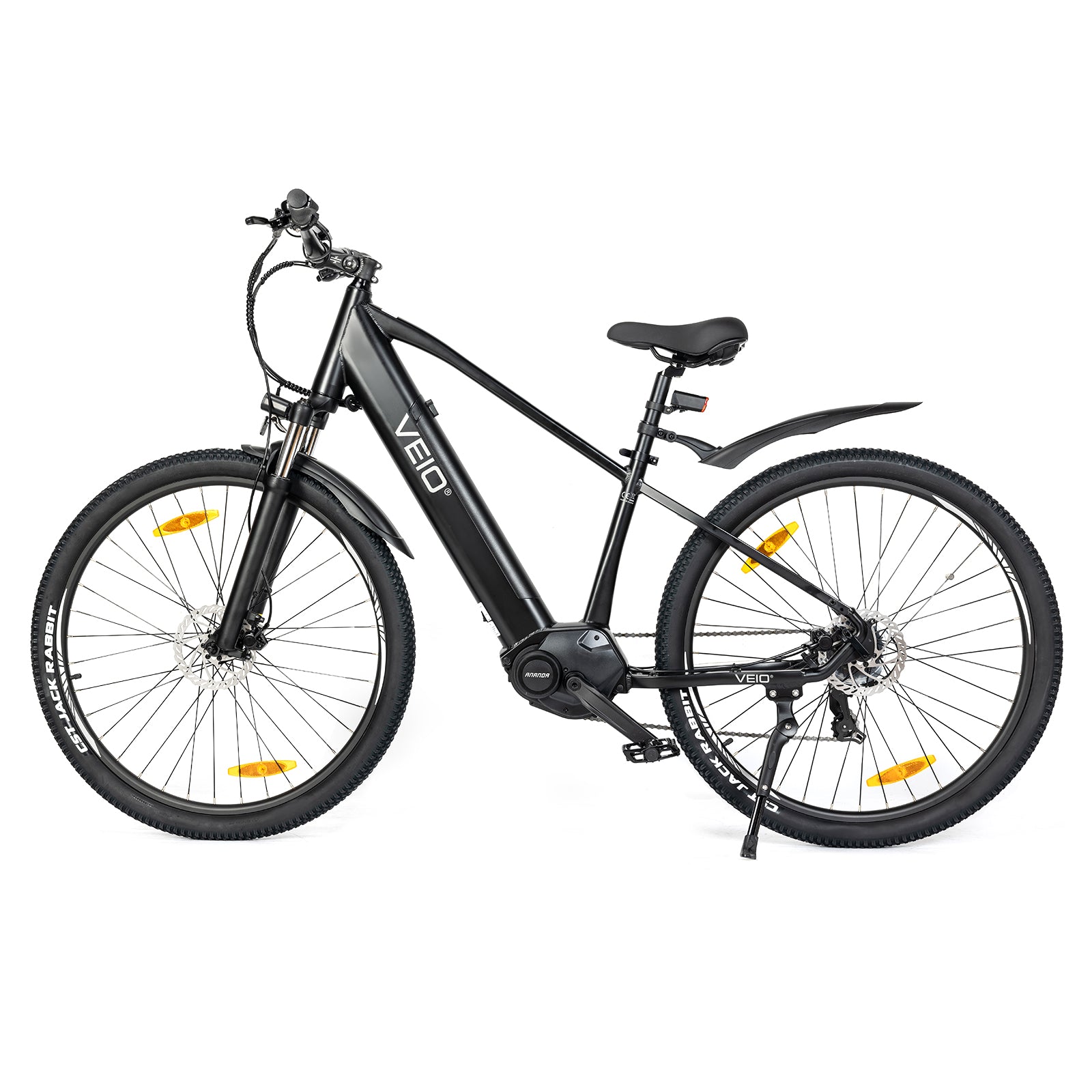

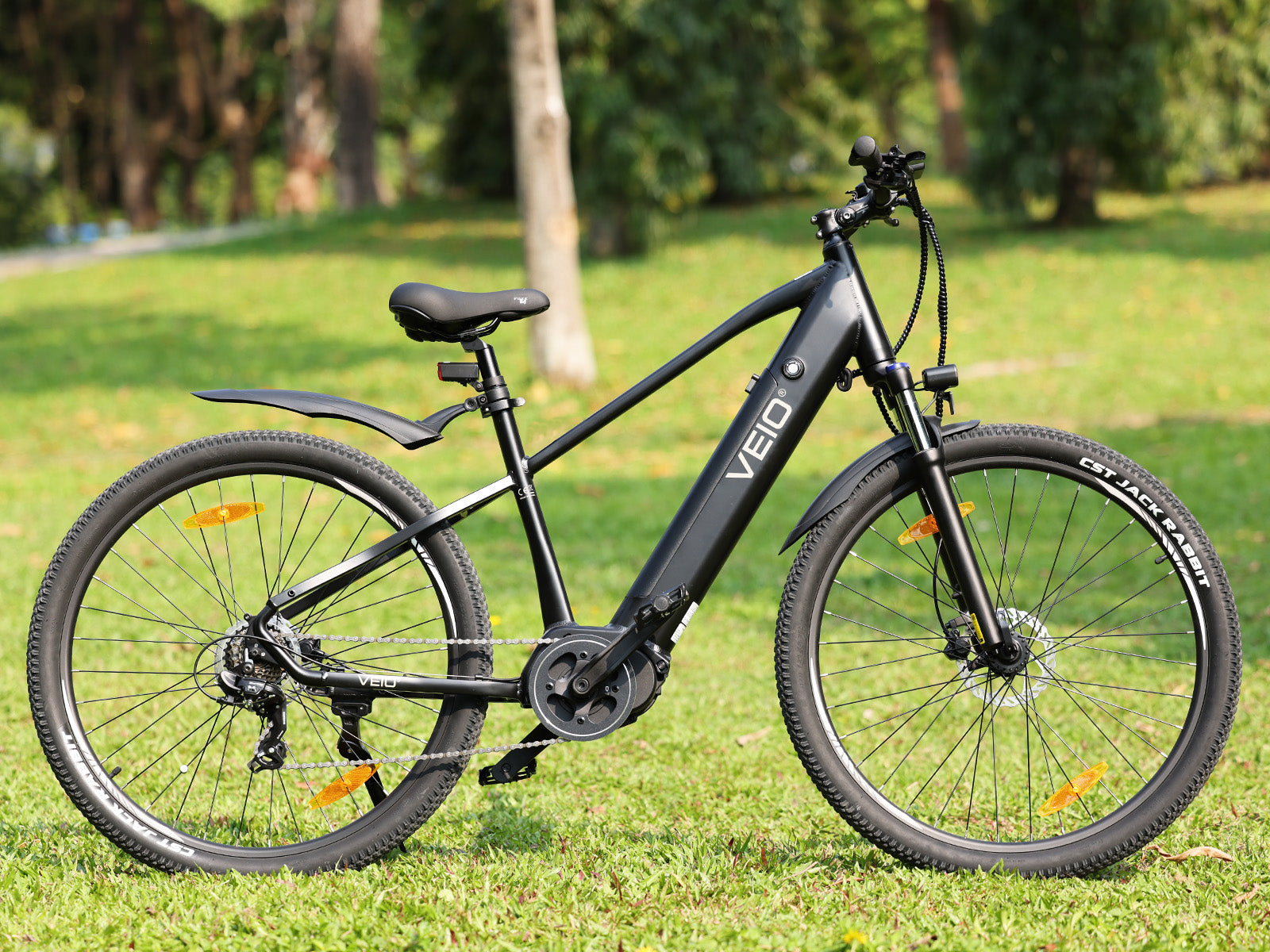

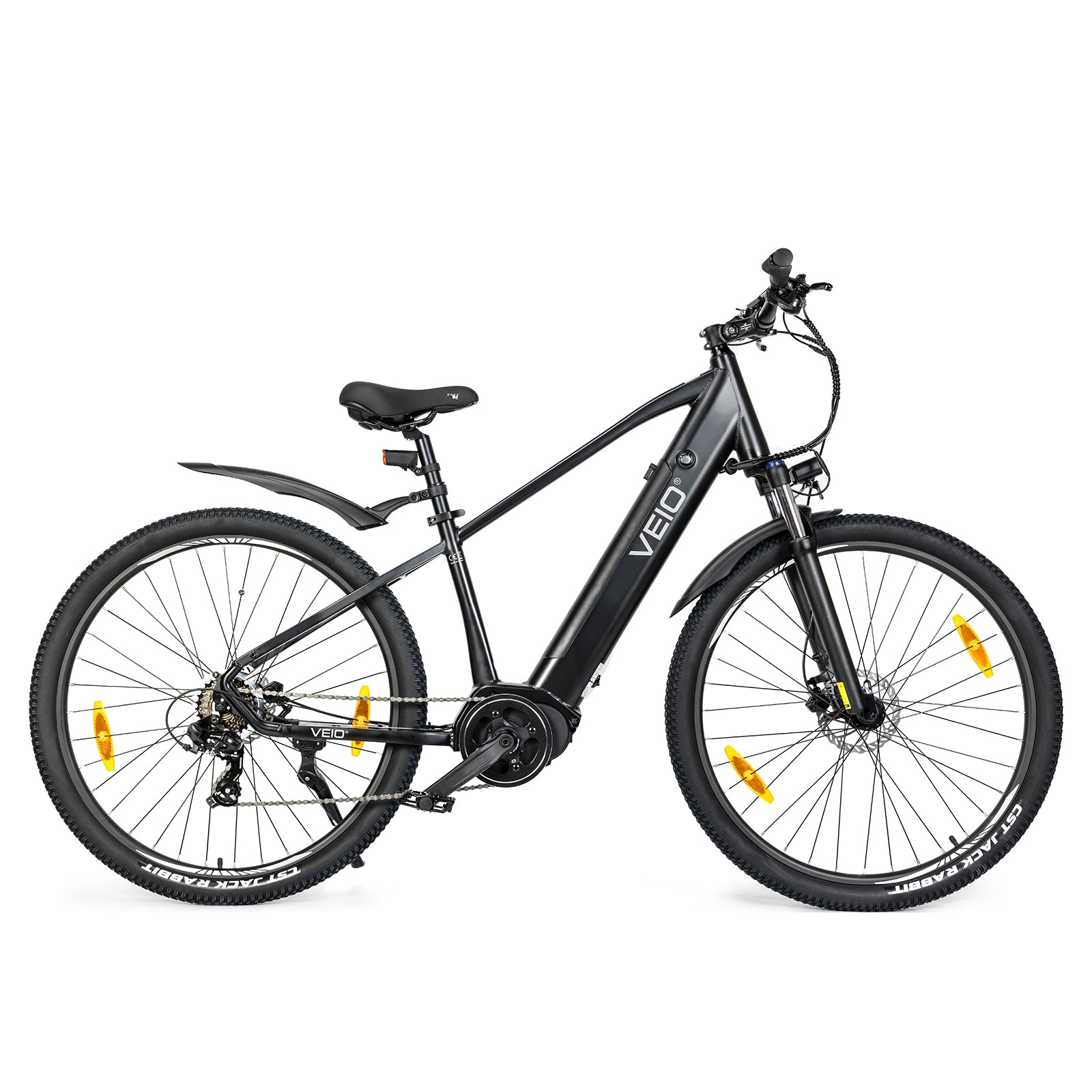

VEIO Yay Electric Trekking Bike
The VEIO Yay electric bike features a robust mid-drive brushless motor delivering 70Nm torque and a maximum instantaneous power of 432W. This mid-drive e-bike can effortlessly speed up to 25 km/h for a thrilling ride. Its powerful mid-drive motor provides lower rolling resistance and more efficient power distribution, enabling a longer range and improved torque for climbing hills and dominating diverse terrain.
Our warranty covers defects in materials, so you can feel confident that.
Expert support so you get exactly what you need.
The VEIO Yay features a mid-drive motor that provides efficient power distribution, enabling an extended range and increased torque for ultimate cycling pleasure. Its durable aluminium alloy frame ensures a thrilling and reliable ride every time. Get ready for an exhilarating adventure with the VEIO Yay!

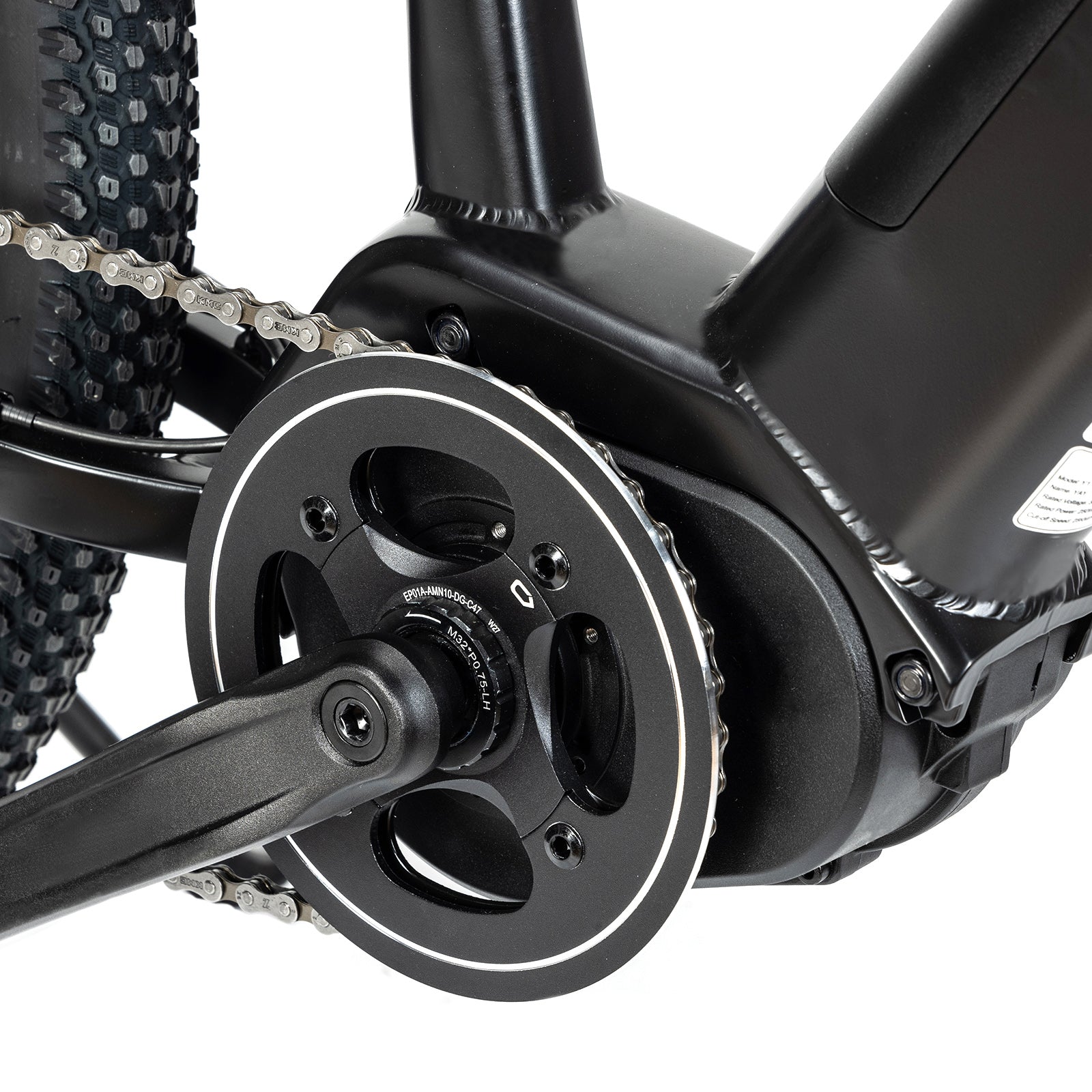

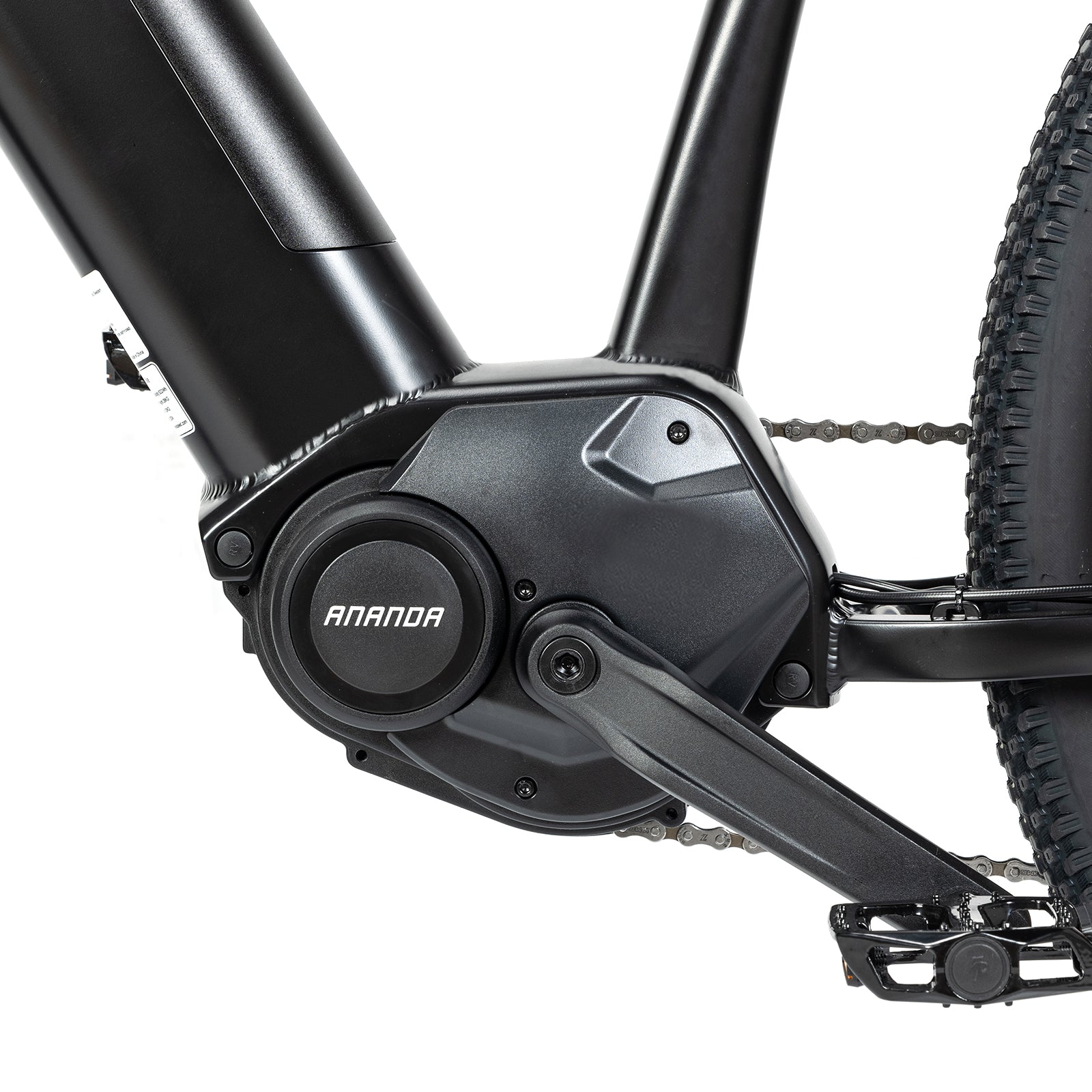

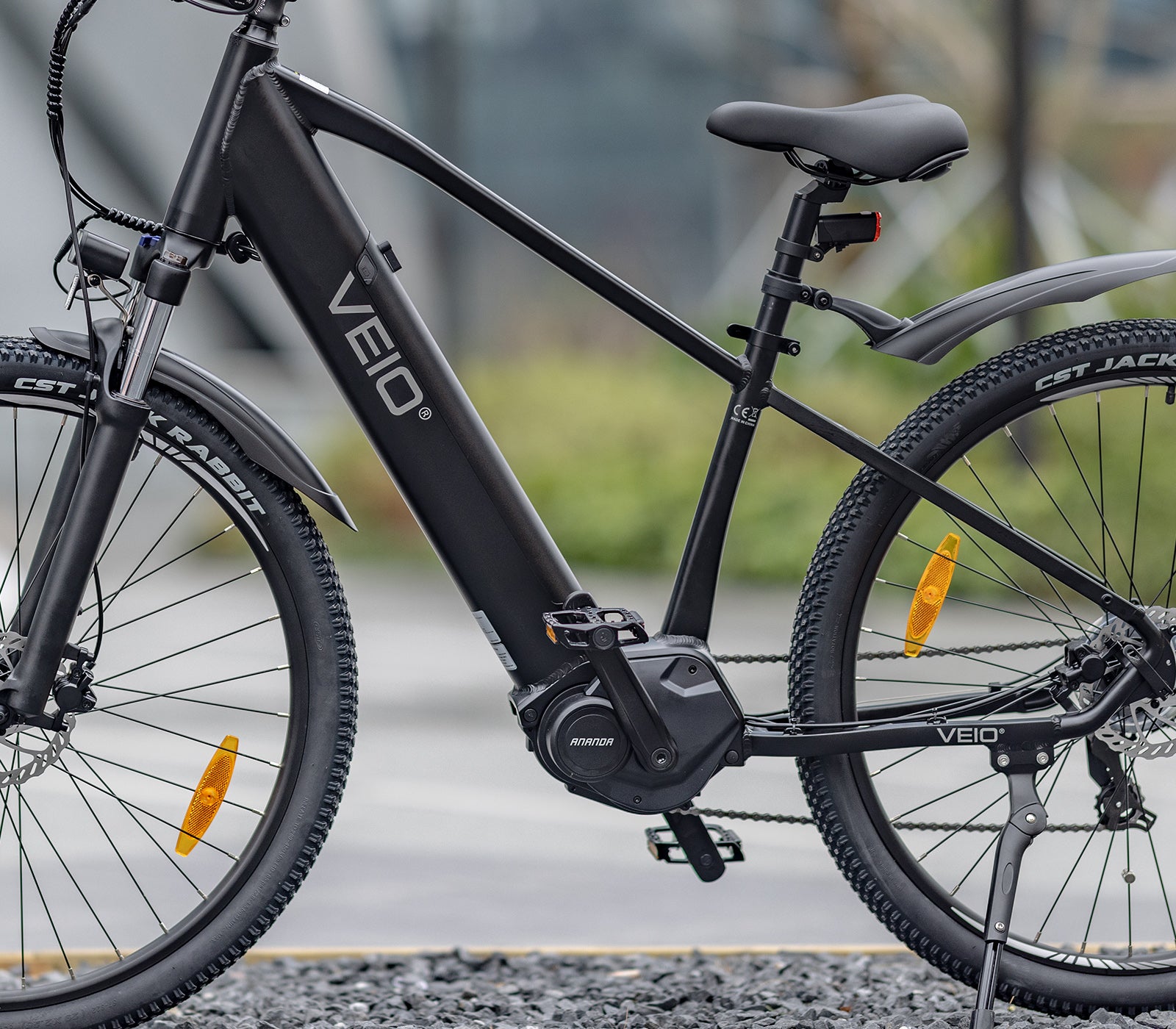

The mid-drive motor features lower rolling resistance and higher energy conversion, enabling a longer range and increased torque while riding, making it a breeze to climb hills and tackle various terrains.

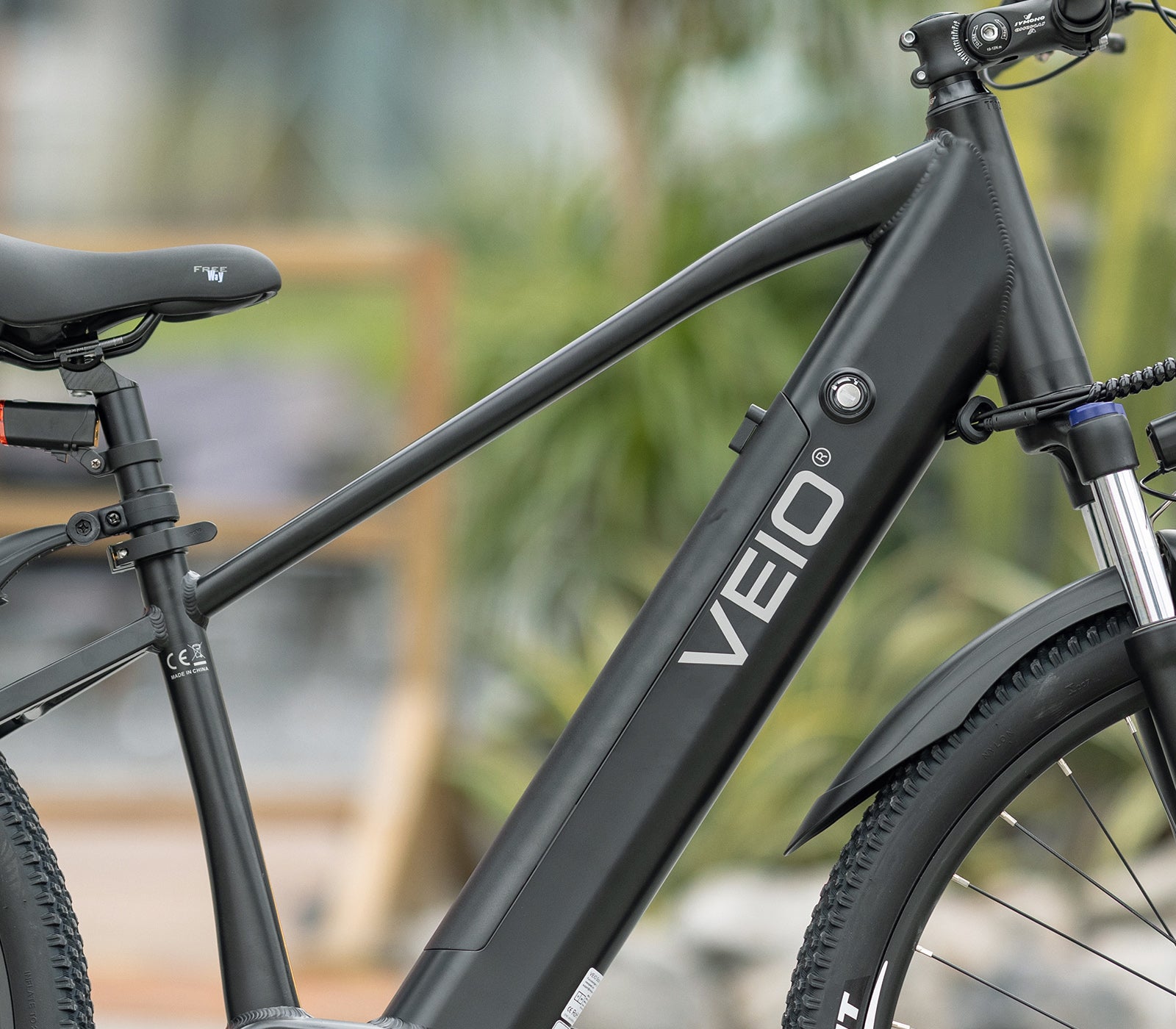

The VEIO Yay is equipped with a sturdy frame that improves safety by providing stability and balance while riding. Dominate the road with confidence and experience a thrilling ride.

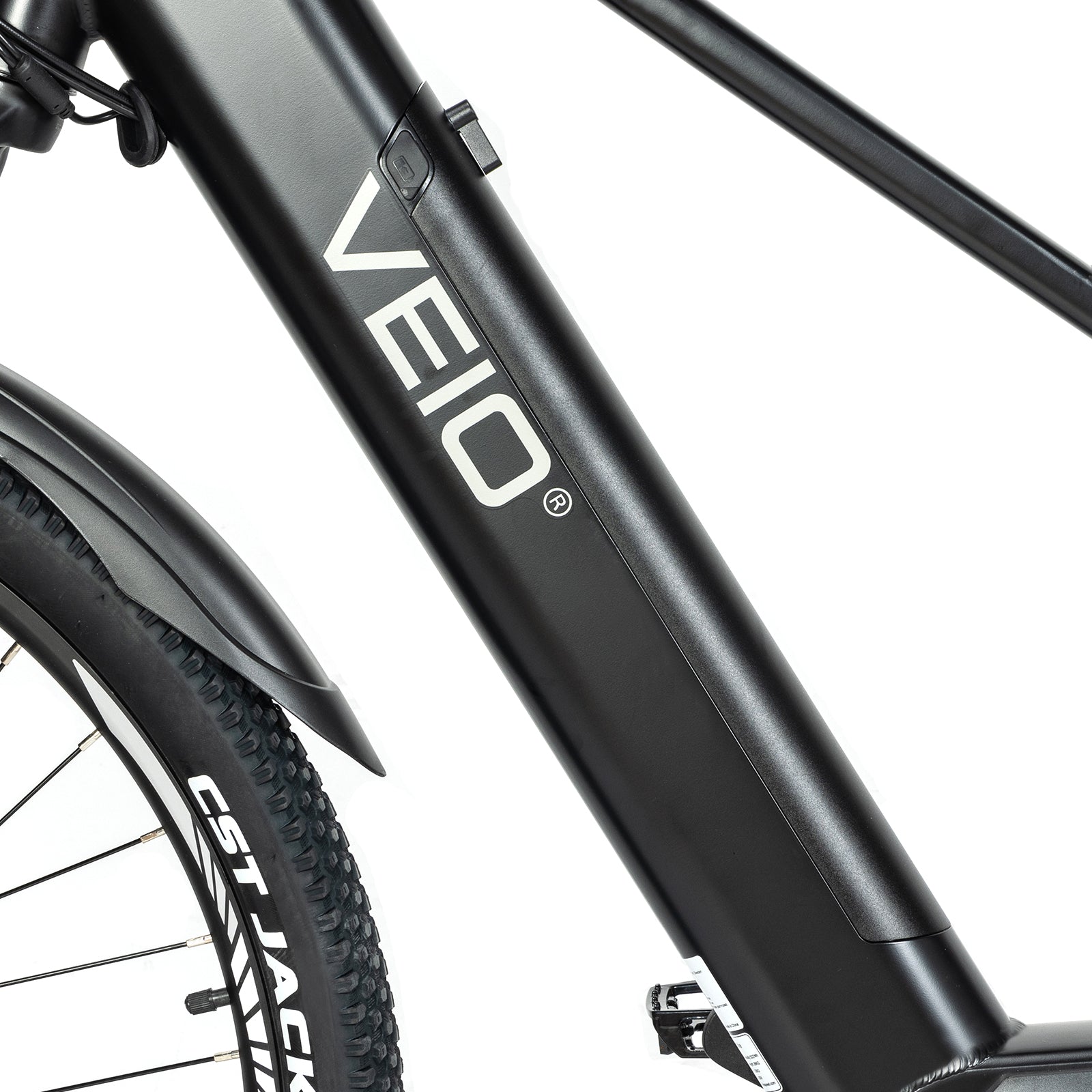

Maximize your range with the removable 522Wh battery, supporting up to 150km per charge in assist mode. Say goodbye to range anxiety with this long-lasting and reliable power source!

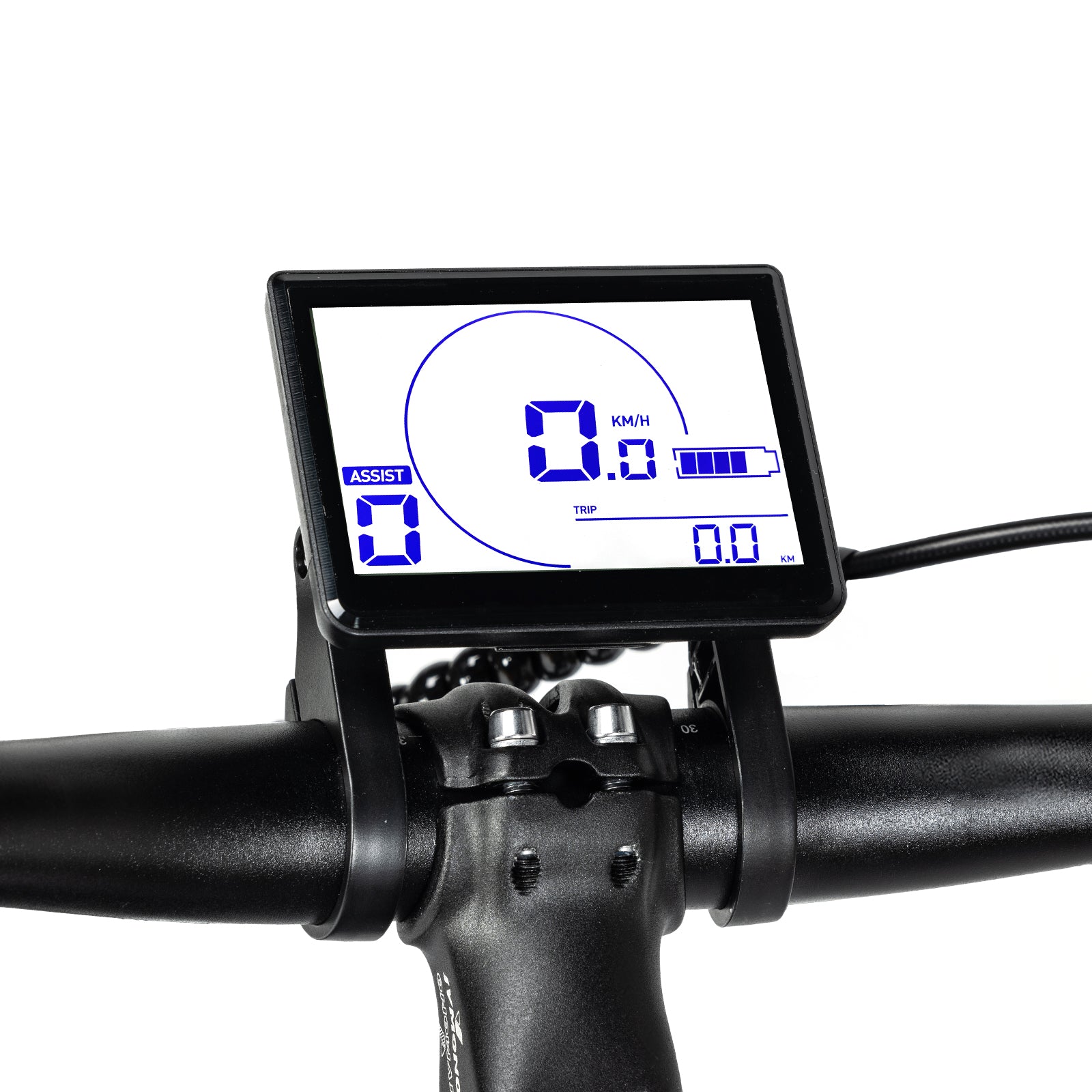

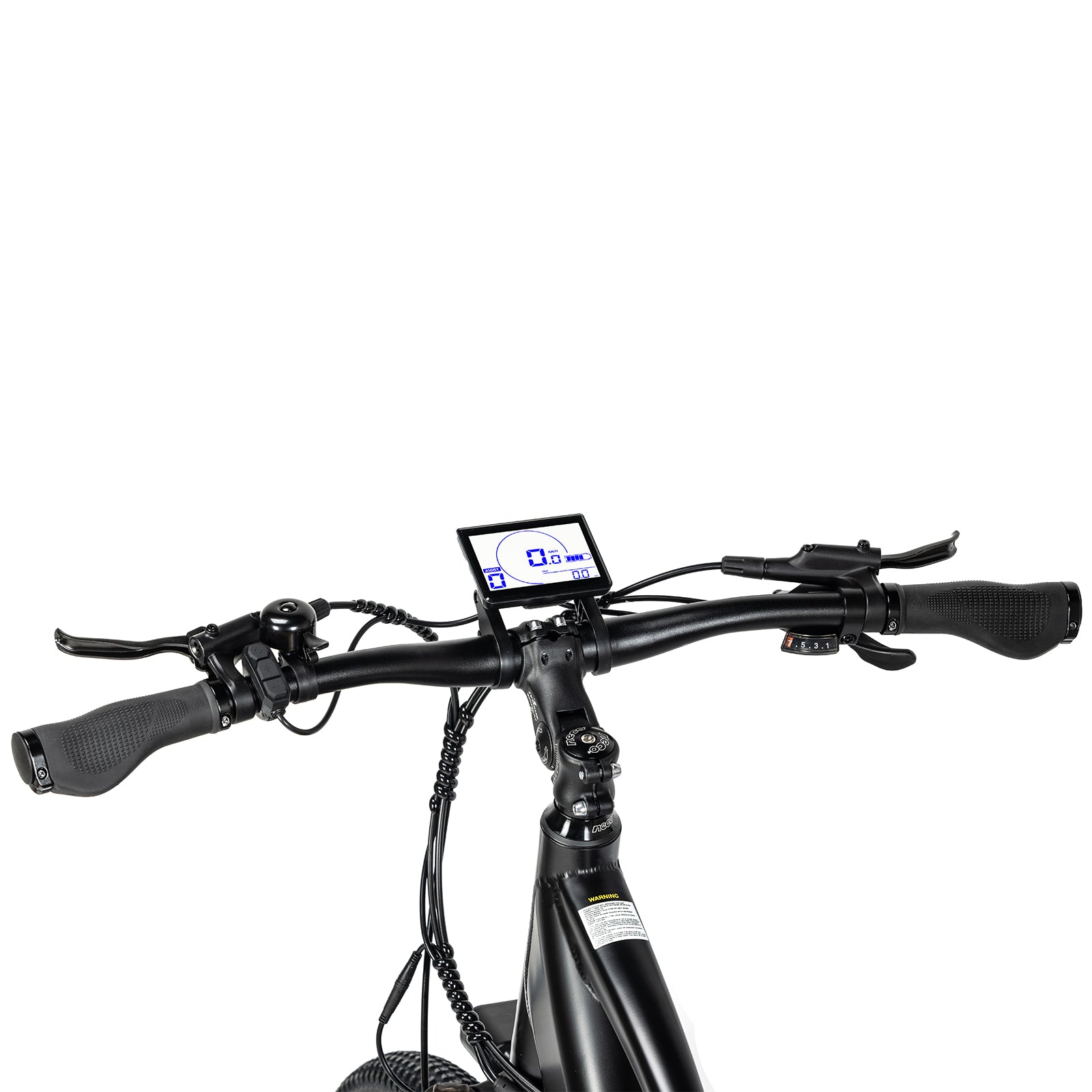

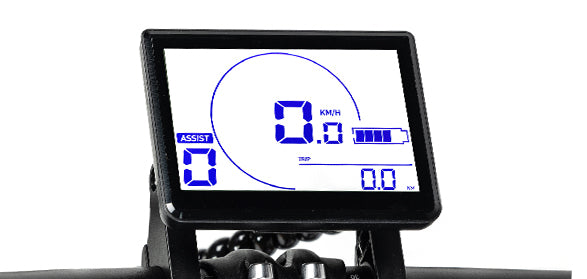

Smart LCD with USB Port
The intelligent LCD not only presents diverse information but also boasts a USB port that lets you effortlessly charge your phone while riding.

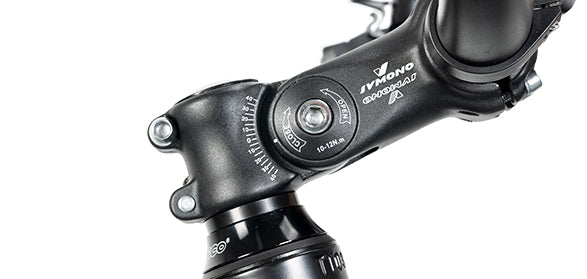

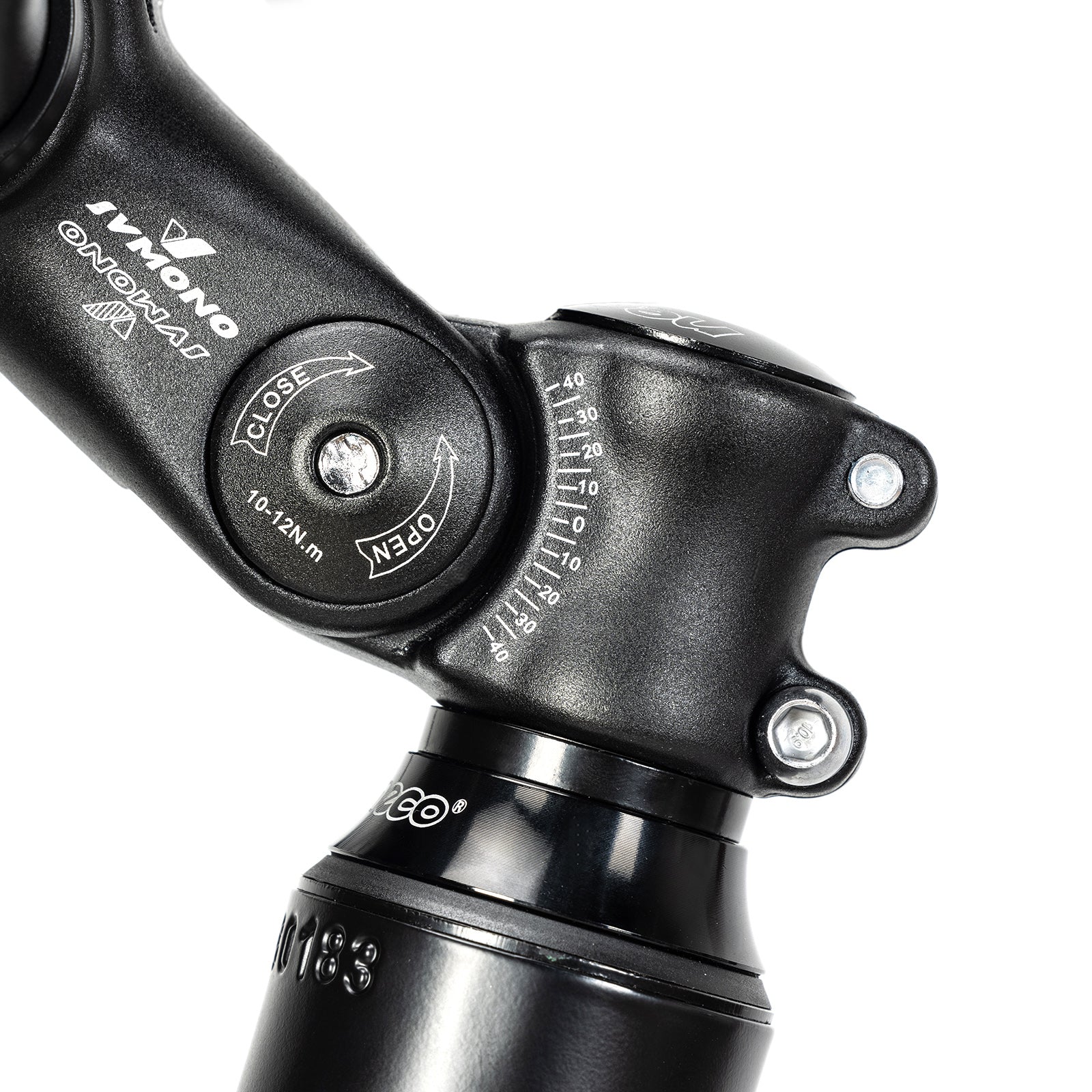

Adjustable Bike Stem
The VEIO Yay comes with an adjustable stem that allows for easy customization of the stem angle, ensuring an optimal and ergonomic posture for unmatched comfort.

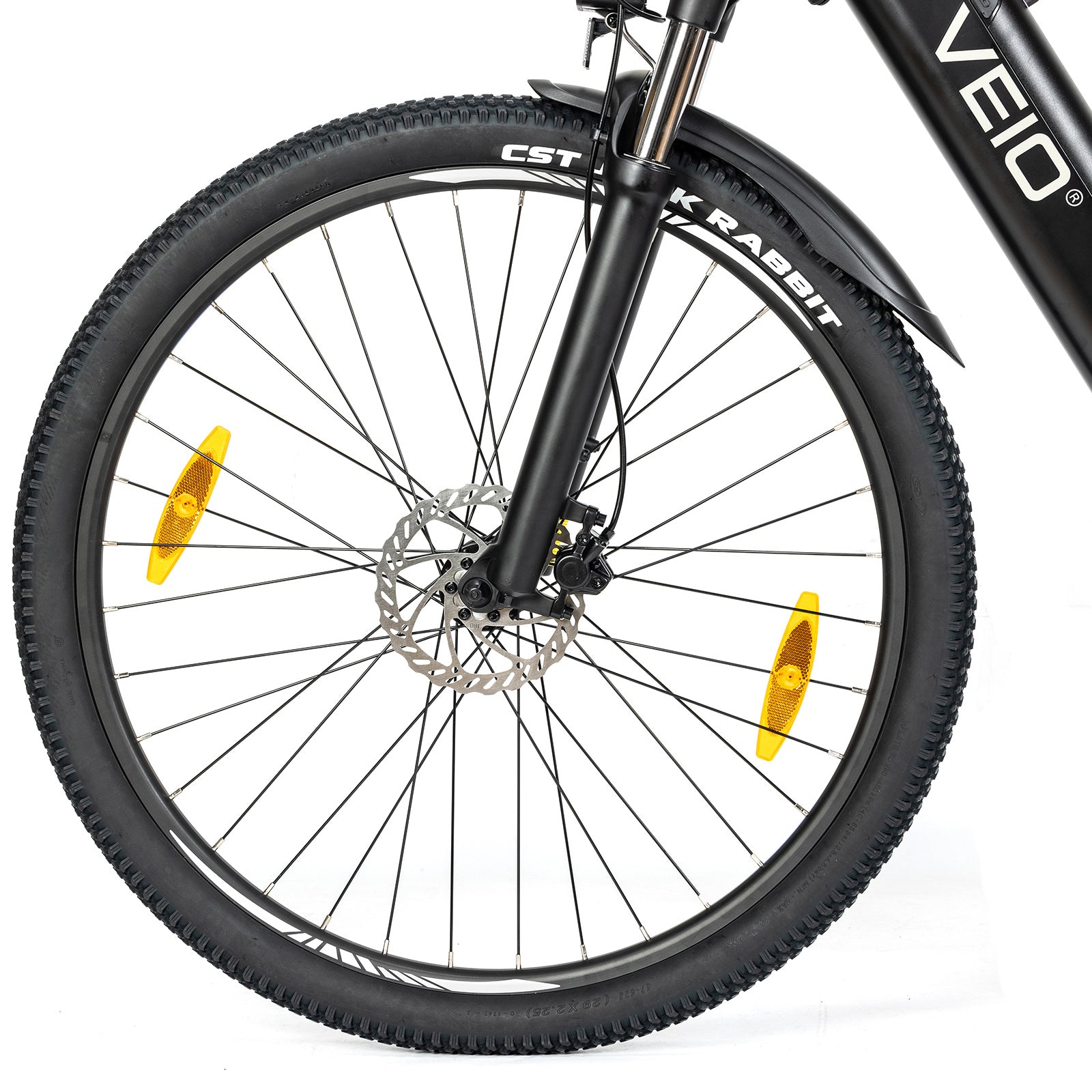

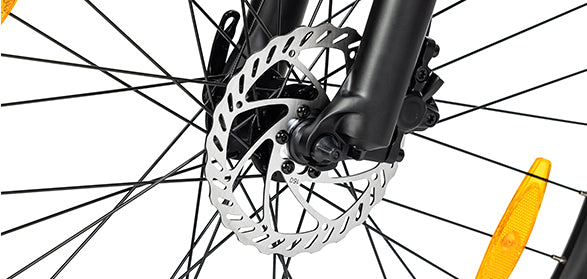

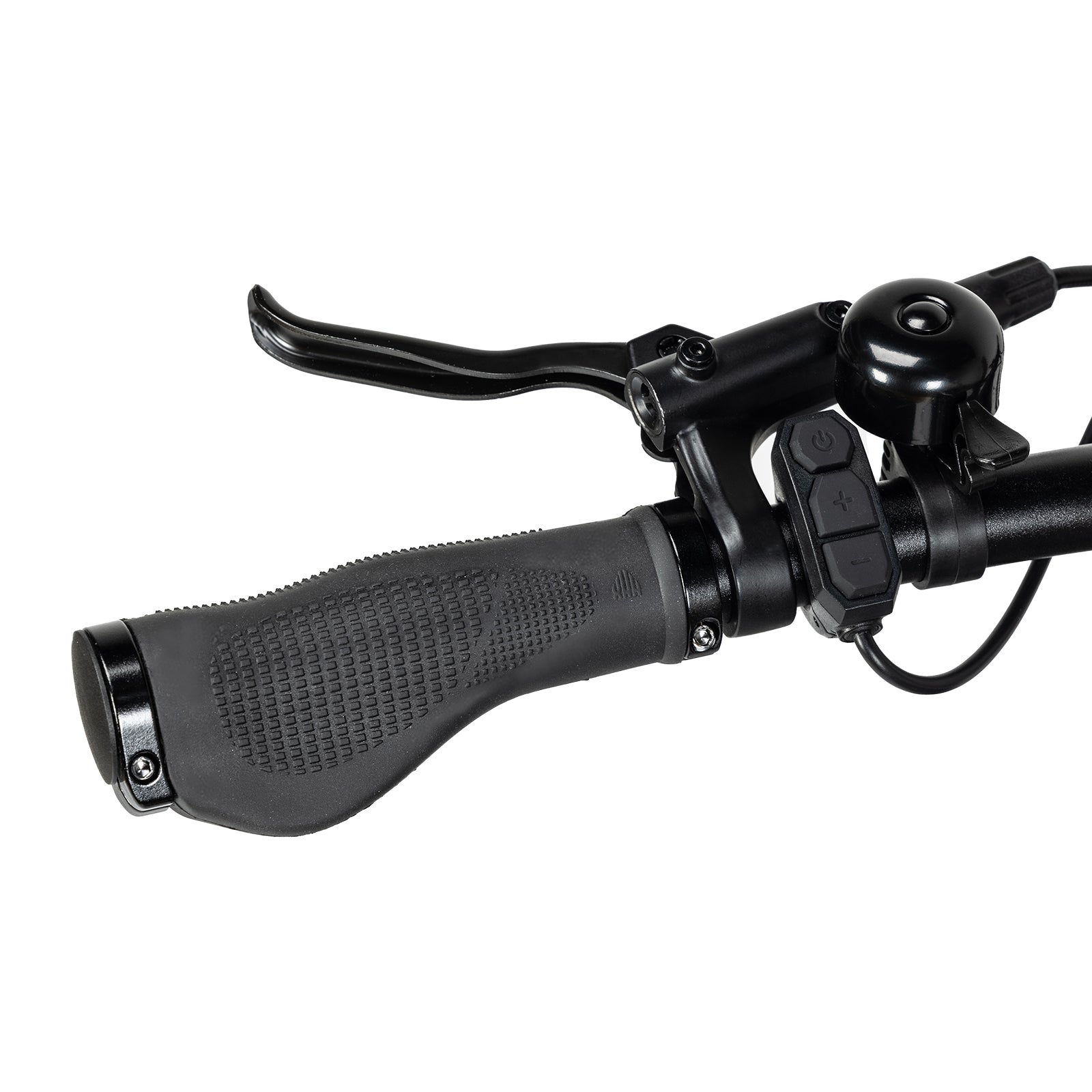

Hydraulic Disc Brakes
Upgrade your ride today for a smoother, safer journey with reliable hydraulic disc brakes. Take control with ease, thanks to superior braking power and responsiveness.

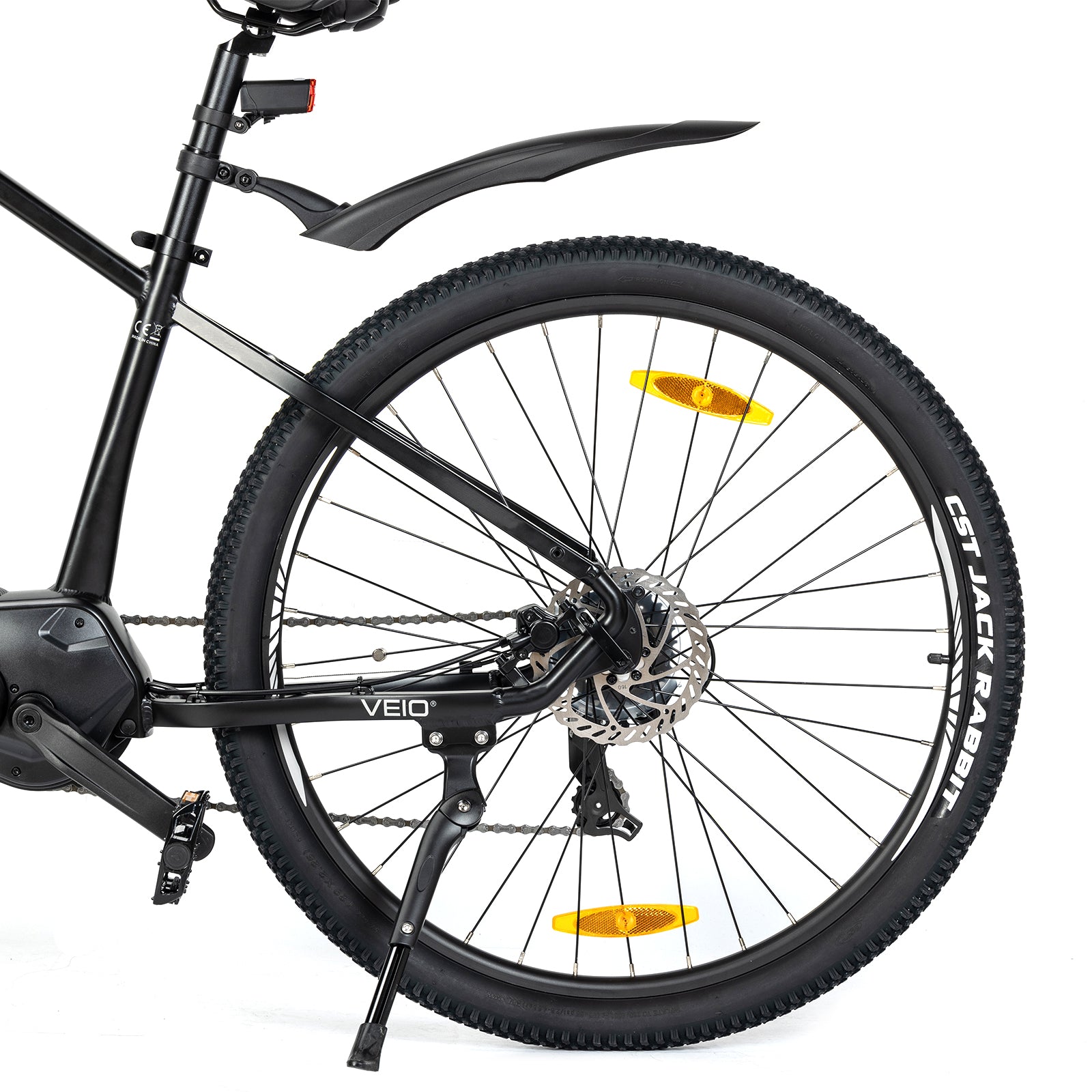

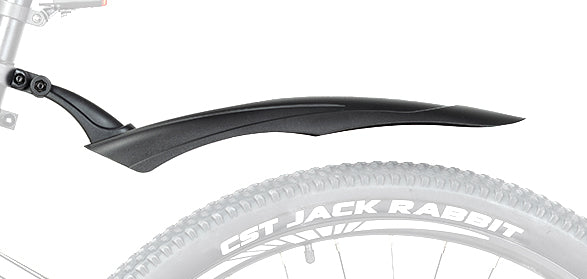

Adjustable Rear Mudguard
The rear mudguard can be flexibly adjusted to the appropriate angle for improved coverage and protection from mud and water spray.

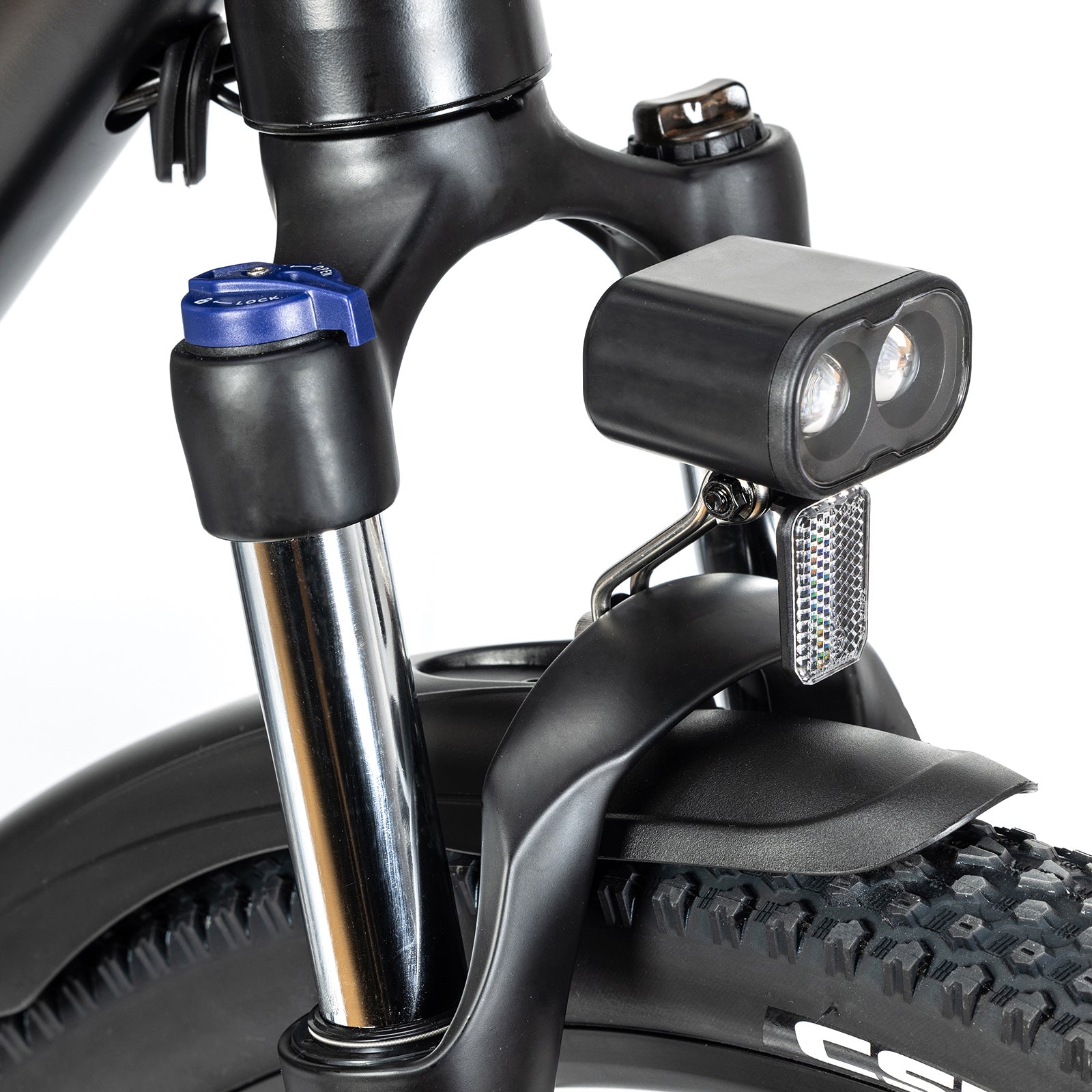

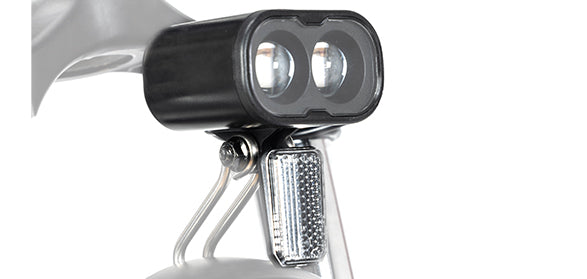

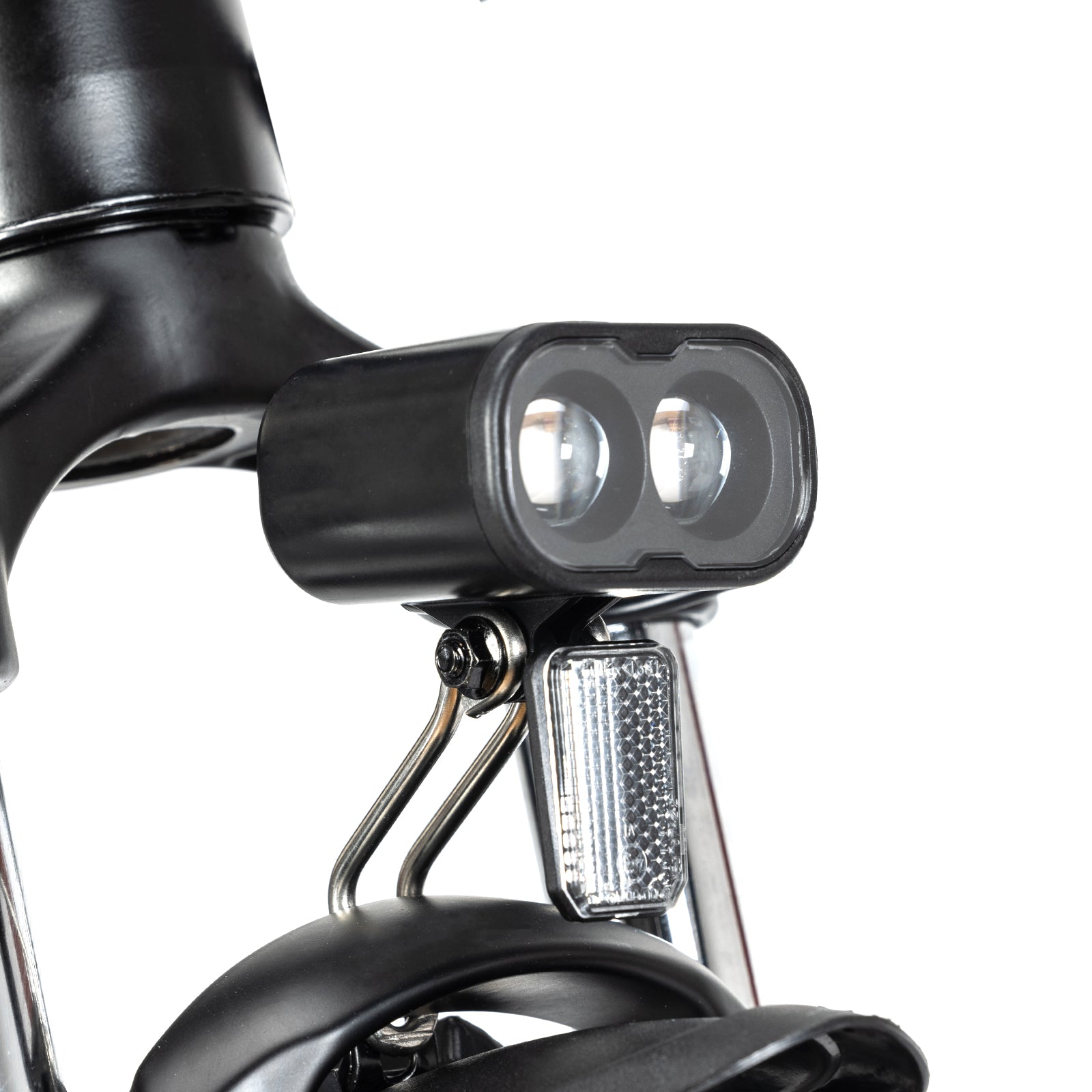

StVZO-Certified Headlight
Illuminate the darkness with the StVZO-certified headlight, casting a powerful beam of light to guide your way through the night. Explore the night with clarity, as the road ahead is brightly lit just for you.

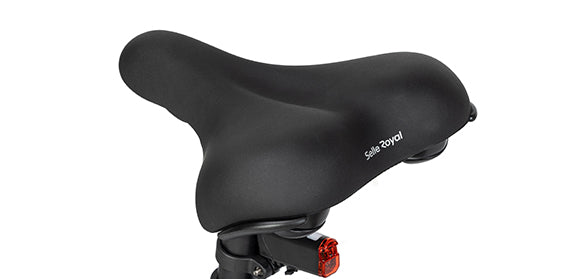

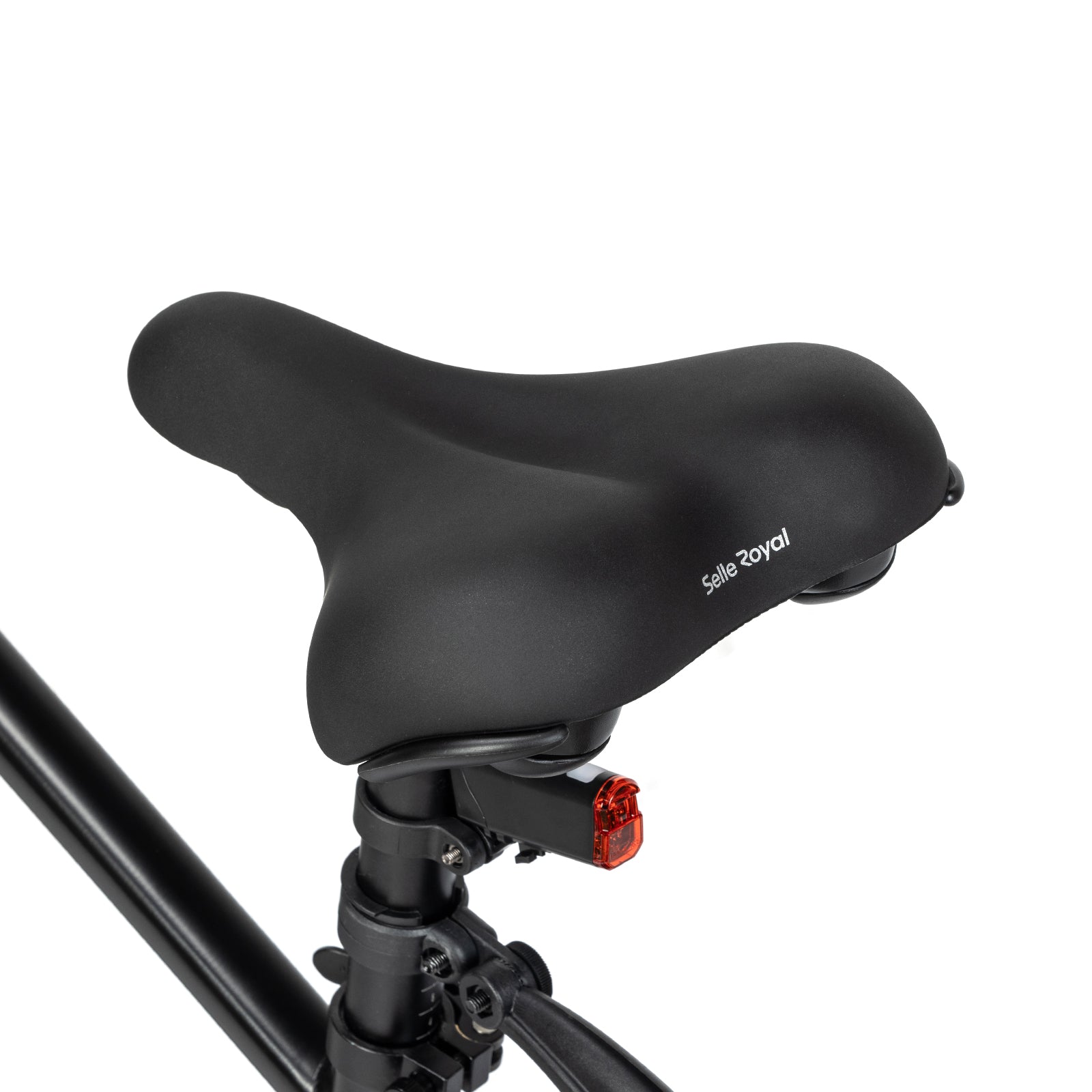

Selle Royal Saddle
The Selle Royal saddle is ergonomically designed to fit all ischial bone widths and satisfy the anatomical needs of both men and women, guaranteeing pressure relief in sensitive areas. Enjoy a pain-free ride!

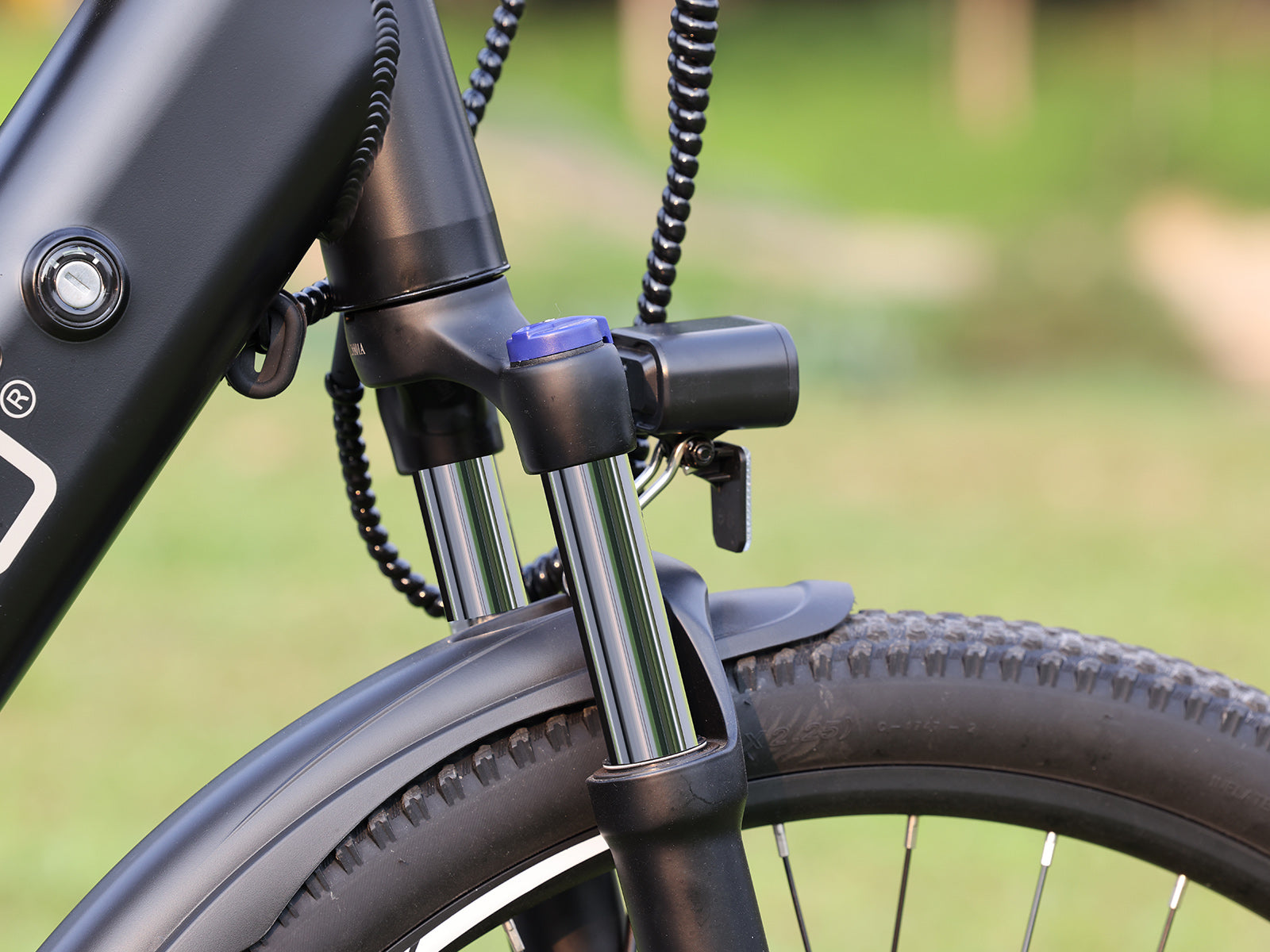

The hydraulic suspension with a lockout design elevates your journey with unparalleled responsiveness and comfort, ensuring an enjoyable ride at all times.
The 29x2.25in CST pneumatic tires glide over bumpy terrain with ease, providing an impressively smooth ride for more pleasure.

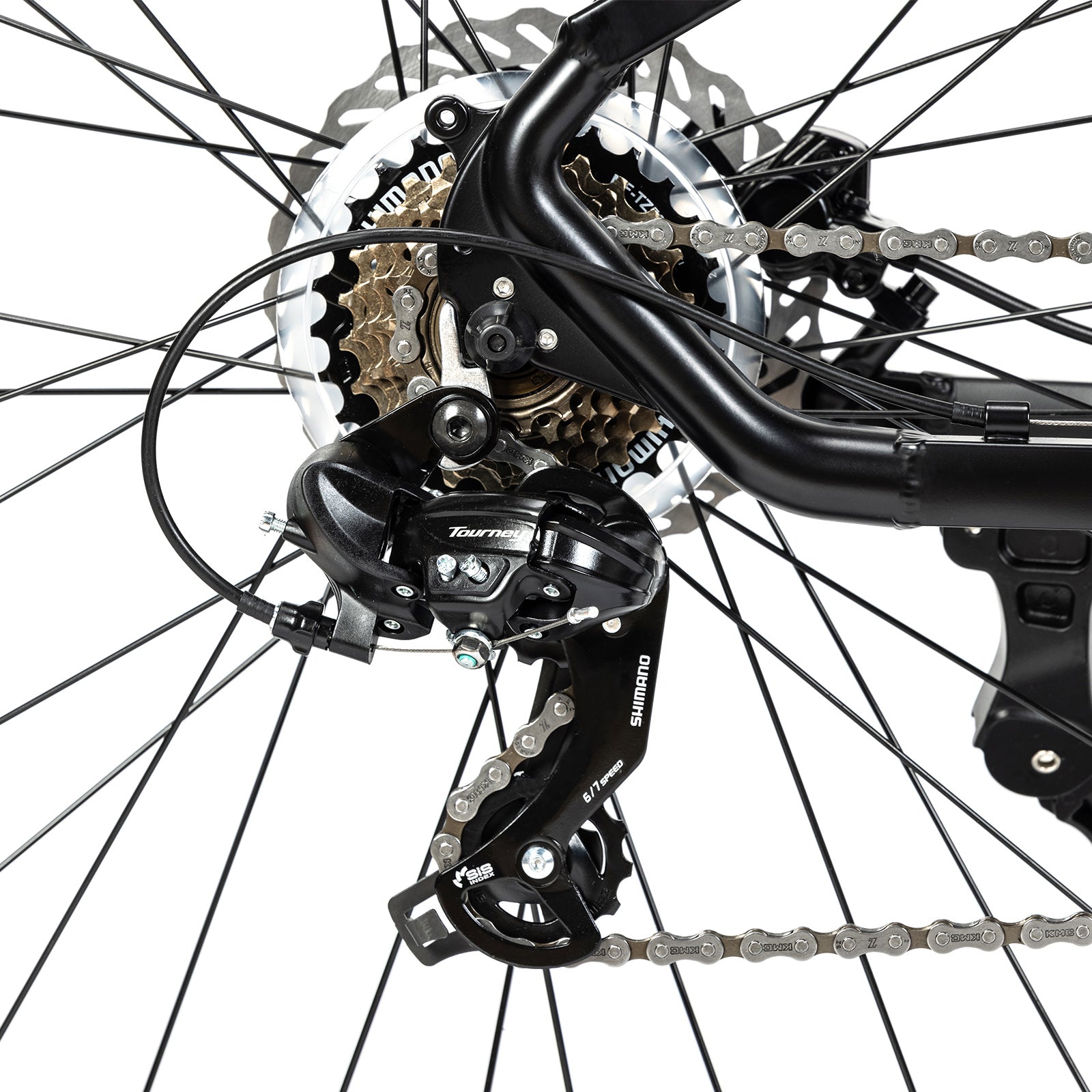

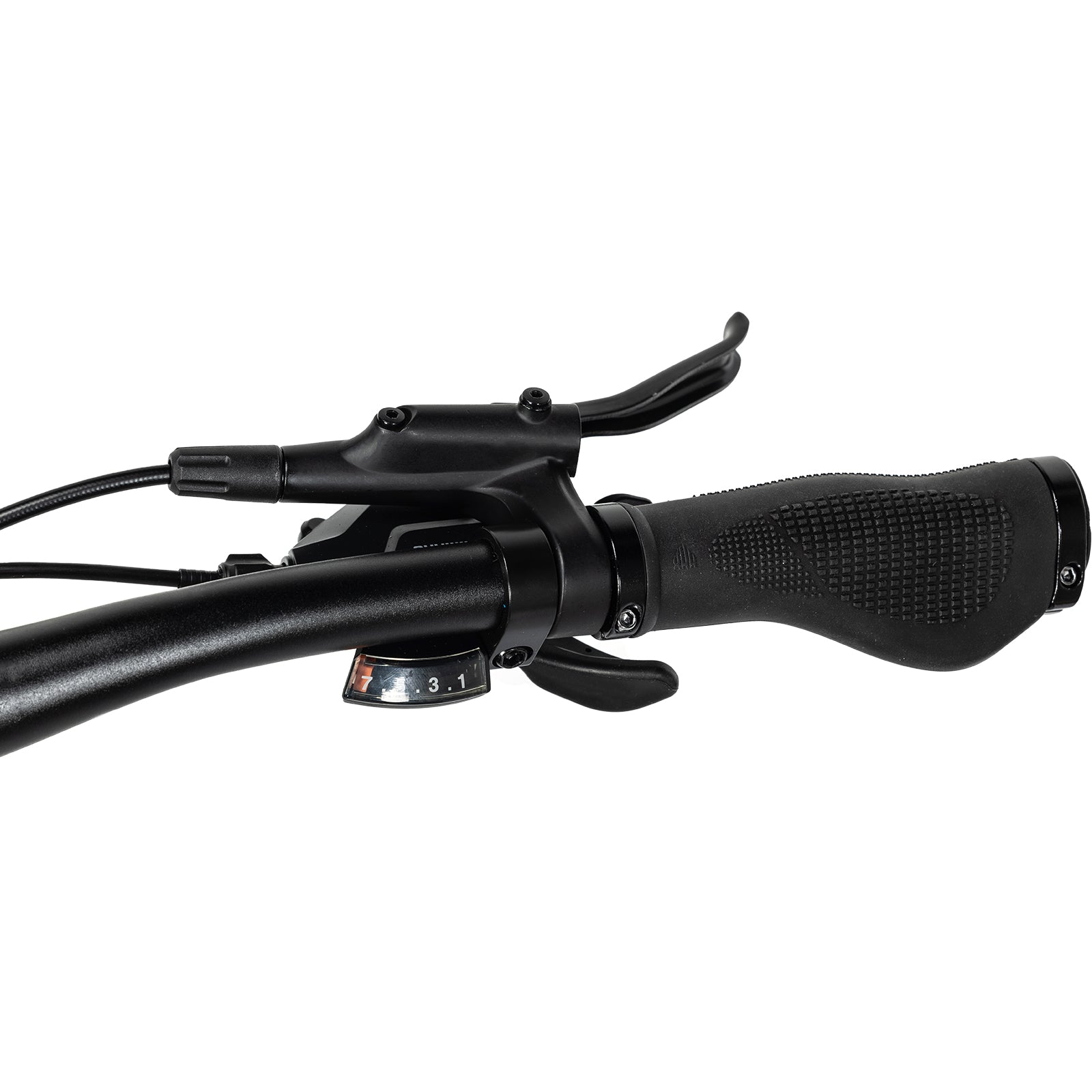

Embrace the fun of variable speed with the 7-speed Shimano gear, as it takes your cycling adventure to unprecedented levels of enjoyment and excitement.
The hydraulic suspension with a lockout design elevates your journey with unparalleled responsiveness and comfort, ensuring an enjoyable ride at all times.
The 29x2.25in CST pneumatic tires glide over bumpy terrain with ease, providing an impressively smooth ride for more pleasure.
Embrace the fun of variable speed with the 7-speed Shimano gear, as it takes your cycling adventure to unprecedented levels of enjoyment and excitement.
Geometry - 17''
| A. Total Length | 74.8" |
| B. Handlebar Height | 43.3"- 47.2" |
| C. Wheelbase | 46.4" |
| D. Min Seat Height | 33.4" |
| E. Max Seat Height | 39.4" |
| F. Standover Height | 31.5" |
| G. Effective Top Tube | 23.2" |
| H. Wheel Size | 29" |
| I. Down Tube | 30" |
| J. Seat Tube | 17" |
| K. Angle between Down Tube and Seat Tube | 42° |
| L. Head Tube Angle | 71° |
| M. Reach | 15.3" |
| N. Stack | 26.4" |
Specifications
| Basic Specification | |
|---|---|
| Net Weight | 24.5kg |
| Unfolded Size | 1900x680x1200mm |
| Size of Frame | 29"x17"/29"x19"" |
| Length of Handlebar |
660mm (26", without grip covers), 680mm (26.8", with grip covers) |
| Height of Saddle (from the ground) | 43.3"-47.2" |
| Recommended Rider Height | 155-195cm (around 5' 1"-6' 5")/165-200cm (around 5' 5"-6' 7") |
| Max Load of Bike | 120 kg (around 264.5 lbs) |
| Cut-off Speed | 25km/h |
| Max Range (Assist Mode) | 150km (Assist Mode) |
| Pedal Assist Levels | 12/15/18/21/25 km/h |
| Walk Mode | 6km/h |
| Waterproof Level | IPX5 |
| Material | Aluminium Alloy (AL6061) |
| Braking System | Hydraulic Disc Brakes & Power-off Design |
| Suspension | Hydraulic Suspension with a Lockout |
| Suspension Travel | 100 mm |
| Motor | |
| Type | Mid-Drive Motor |
| Rated Voltage | 36V |
| Max Instantaneous Power | 432W |
| Max RPM | 114 |
| Max Output Torque | 70N.M |
| Derailleur | |
| Brand | Shimano |
| Number of Gears | 7 (Rear) |
| Battery | |
| Capacity | 14.5Ah |
| Voltage | 36V |
| Charging Time | 7.5h |
| Power Capacity | 522Wh |
| Protection System | Yes |
| Charger | |
| Input | 100-240V, ≤2.0A |
| Output | 42V, 2A |
| Tires | |
| Brand | CST |
| Size | 29"x2.25" |
| Type | Pneumatic Rubber Tires |
| Tire Pressure | 40-70PSI |
| Best Tire Pressure | 45-65PSI |
| Display | |
| Size | 3.5" |
| Type | LCD |
| Information | Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Brake Mark |
| Functions | Power on/off, turning light on/off, shifting assist levels, activating walk mode, removing trip data, setting screen timeout, etc. |
| Note |
The max range is achieved under the following conditions: 75kg load, 26℃ temperature, 15km/h constant speed, on flat roads with no strong wind. |
